Powerful Granulators TMD Series

The powerful crusher TMD series is especially suitable for the crushing and recycling of various hard plastics, and the ...

Online HotLine:0512-66106021-3

Product Features

1. The motor is equipped with an overload protection device and a power supply chain protection system, which is absolutely safe to operate and clean.


2. Easy-to-remove design: the feeding hopper, crushing knife and filter can be disassembled.


3. Unique design, minimum horsepower, but good effect, and equipped with double-layer noise reduction equipment, low noise.


4. The gap between moving and fixed knives is adjustable.


5. When crushing transparent materials and white materials, the feeding hopper and the sieve should be made of stainless steel to avoid the paint falling off during crushing.


Product Details

Place of Origin: Jiangsu, China


Condition: new


Plastic type: PVC, PET, PE


Machine Type: Plastic Crusher


Maximum production capacity (kg/h) :2500


Production capacity (kg/h): 180 - 400 kg/h


Brand Name: TongYi


Use: Film Shredder


Voltage: 380V/220V


Size (L*W*H): 1050MM*1100MM*1600MM


Power (kW): 15


Weight (tons): 2


Warranty: 4 years


Applicable industries: hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, farms, retail, food stores, printing shops, construction engineering, energy and mining, food and beverage stores, advertising agencies, industrial


Main selling point: Energy saving


Showroom Location: Egypt, Canada, Turkey, UK, USA, Italy, France, Germany, Vietnam, Indonesia, India, Mexico, Spain, Korea, Colombia, Malaysia, Australia


Marketing Type: New Products 2020


Mechanical test report: if


Video External Inspection: If


Warranty for core components: 1 year


Core components: motor, pump


Product name: vacuum drying oven


Function: efficient drying


Usage: dry wet material


Name: Crusher


Application: Recycling waste plastics


Keywords: strong plastic crusher


Crushing material: PVC PPR PP HDPE LDPE


Type: Strong Plastic Shredder


Material: pet, sports, PVC

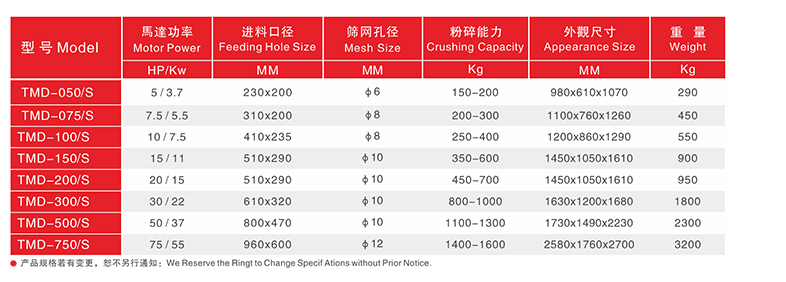

Product Parameter

Powerful Plastic Crusher Specification

Model

Motor Power(HP/KW)

Feeding Size(mm)

Blade size(mm)

Crushing Capacity(kgs)

Machine Size(mm)

Gross Weight(kgs)

TMD-050/S

5HP/4KW

230*200

230*200

150-200

640*900*1100

290

TMD-075/S

7.5HP/5.5KW

300*200

300*200

200-300

700*1000*1260

450

TMD-100/S

10HP/7.5KW

410*235

410*235

250-400

870*1100*1400

550

TMD-150/S

15HP/11KW

510*290

510*290

350-600

1030*1400*1500

850

TMD-200/S

20HP/15KW

510*290

510*290

450-700

1030*1400*1500

950

TMD-300/S

30HP/22KW

610*320

610*320

800-1000

1400*2000*1800

1800

TMD-500/S

50HP/37KW

800*470

800*470

1100-1300

2100*1490*2230

2000

TMD-750/S

70HP/55KW

960*600

960*600

1400-1600

2150*1760*2830

3000


Product Process

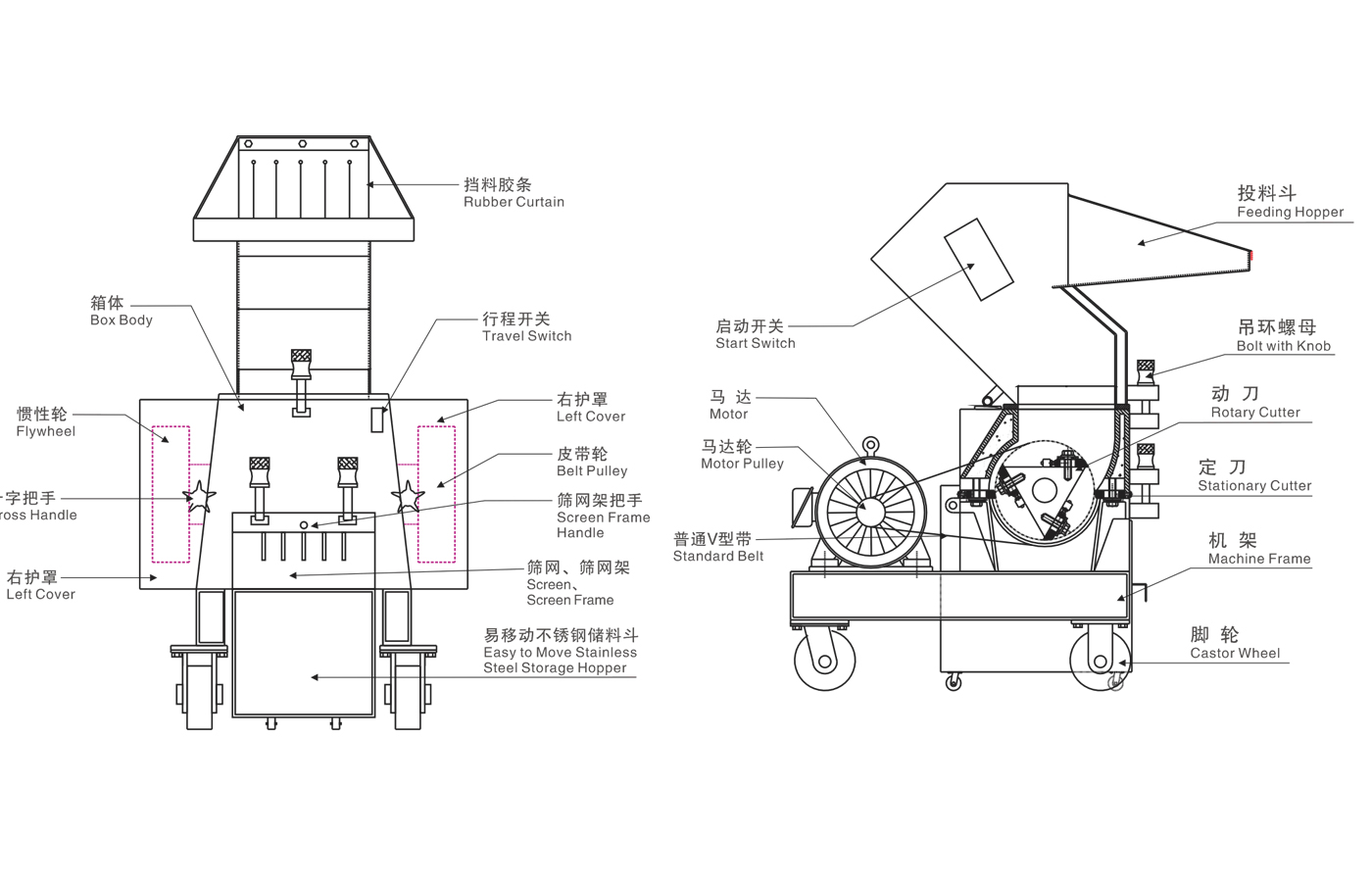

Structure diagram
