All in One Compact Dryers TCD Series

TSH Europeanized down blowing heat preservation dryer series is designed in one piece, and the inside and outside of the...

Online HotLine:0512-66106021-3

Product Features

1. The dehumidifying dryer, the hopper dryer and the suction machine are integrated into three machines, which are neat and beautiful and do not occupy space.


2. The honeycomb-type washable ceramic runner is adopted, which will not produce dust after long-term operation, which can maintain the cleanliness of raw materials, avoid pollution, and ensure product quality.


3. During continuous load operation, the dew point can be maintained at -32℃~-40℃. In the case of chilled water, it can even reach below -40°C, and the dew point curve remains stable without ups and downs.


4. The 7-inch color touch screen can automatically display the operating status, with simple operation and complete functions.


5. The double-layer thermal insulation design of the lower blowing dryer ensures that the raw materials are discharged first and saves energy.


6. The dryer is made of stainless steel and is equipped with a cleaning and maintenance door, which is convenient and quick to clean and maintain.


7. The built-in one pair of two suction machines can reach one pair of four suction materials.


8. After drying, the raw material conveying adopts the design of cut-off valve type suction box to ensure that there is no residual material in the pipe.


9. The secondary side suction system can adopt a closed air supply system according to the demand to avoid the phenomenon of moisture regain of raw materials.


10. With phase loss, reverse phase, abnormal transmission, motor overload, regeneration over-temperature, drying over-temperature, insufficient cooling water and other protection devices.


Product Details

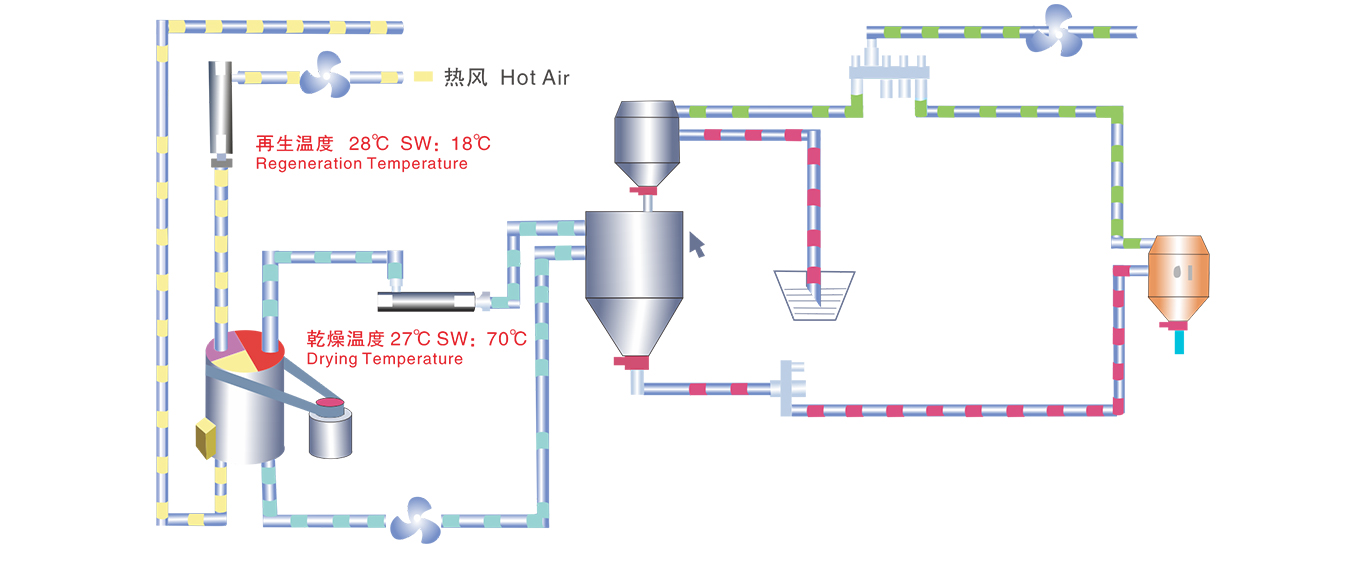

Working principle diagram

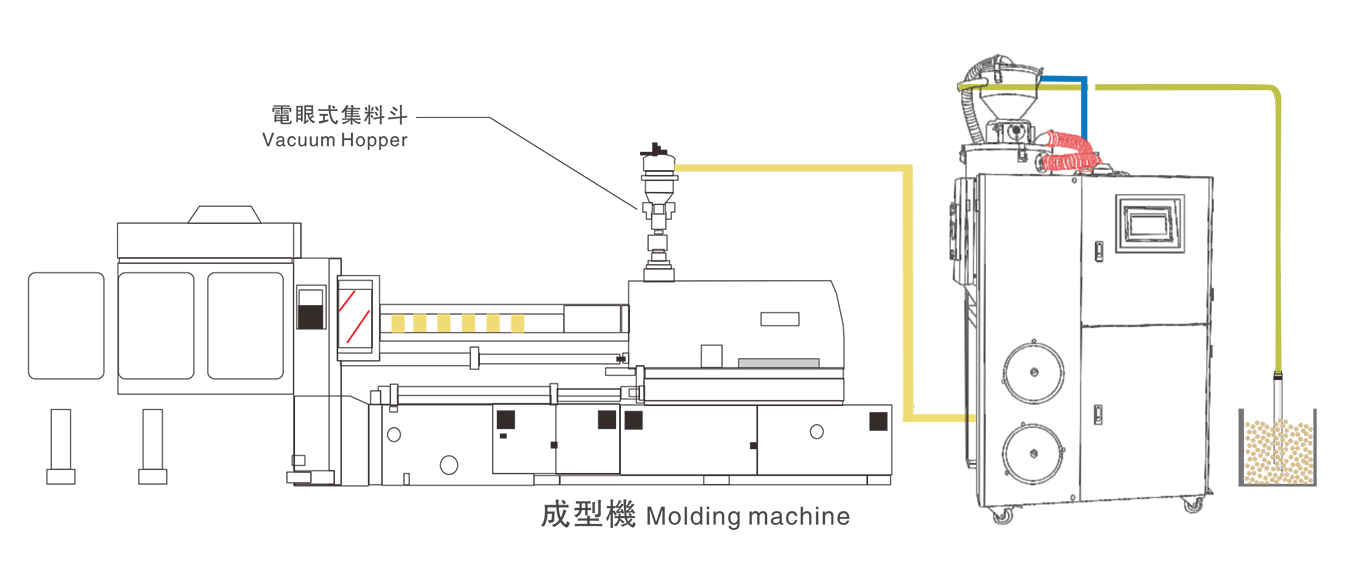

Workflow diagram

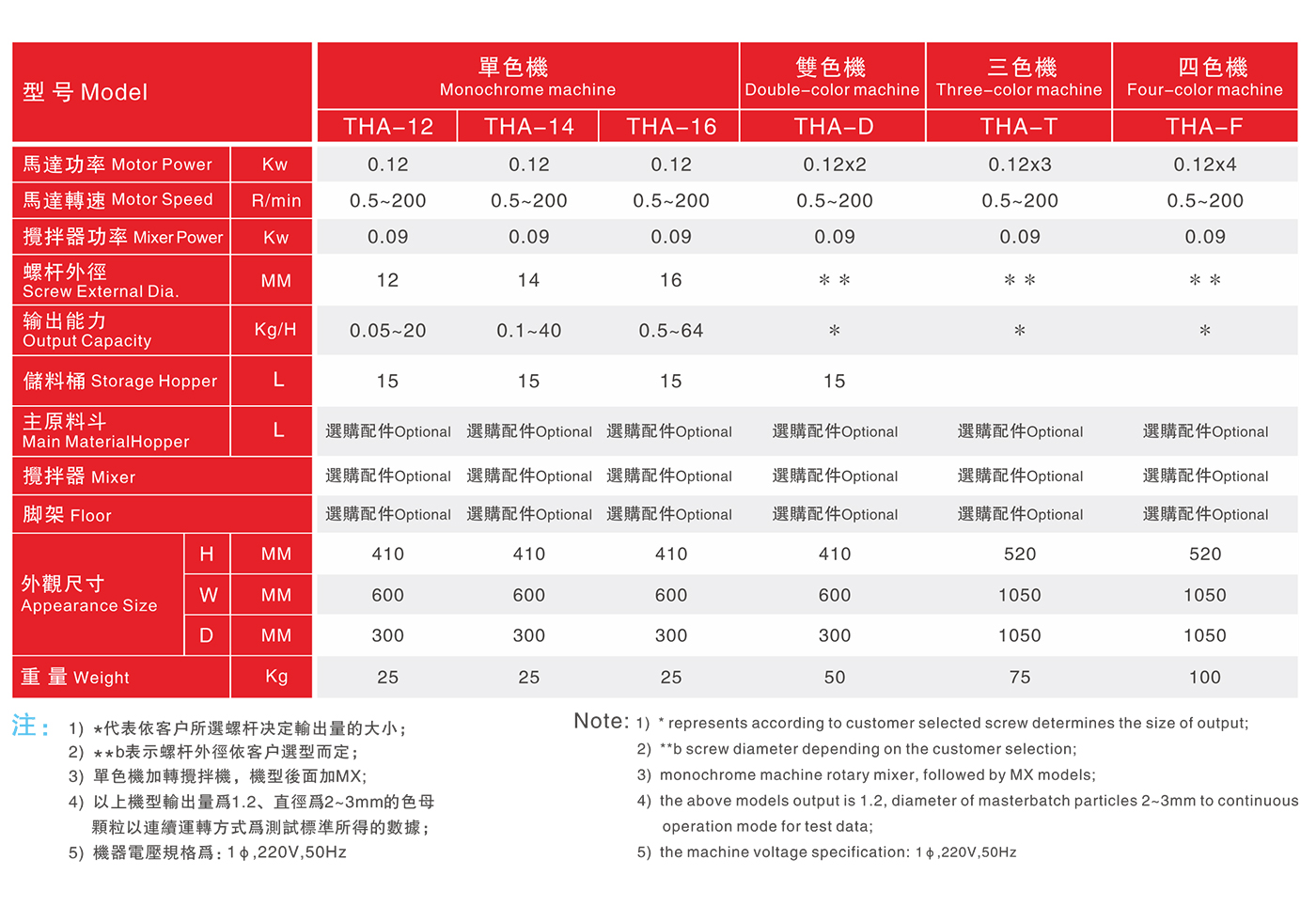

Product Parameter
